What is SQL

• Structured Query Language, pronounced as “SQL”.
• Used for Creating, Accessing, Exploring, Cleaning, and Analyzing data
• SQL is a programming language for interacting and managing the databases
• SQL is relatively easy to learn
• Very few commands in whole language
• Intuitive code structure and easy syntax

What is a database

• Organized collection of data
• A collection of files storing related data or a coherent collection of data
• Database contains
  • Tables
  • Queries
  • Schemas – Data structure
  • Views – Virtual tables, it doesn’t contain any data and it is dynamically calculated
• A single database can contain multiple tables and queries

Example Databases

• Universities: Students database, registration, grades
• Sales: customers, products, purchases
• Manufacturing: production, inventory, orders, supply chain
• Human resources: employee records, salaries, tax deductions, Payroll database
• Amazon’s products database
• Banking Accounts database, all transactions
• Airlines: reservations, schedules

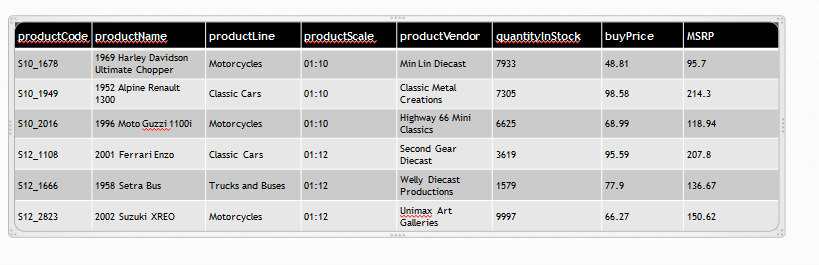

Tables, columns and records

• Tables contain homogeneous data records
• Contains columns and records
• Table is the combination of rows and columns, where each row is a record or a data value. Each column gives some specific information about the record.

• The table looks like the details of some products.

Database Management System

• If we have a database, i.e., the collection of tables or data inside it, we need a software to interact with Databases.
• We need to query the database to get a particular information about the database. Like if we have an employee database, how to get the info about an employee working at a particular location?
• To perform such operations and extract the information, we need a software to interact with the database.
• DBMS is a software, designed for the definition, creation, querying, update, and administration of databases
• All information in database cannot be accessed from the database, only privileged or authorized people can access some vital information. This is managed by the DBMS.
• A database created in a DBMS system may not be compatible with other DBMS software’s
• We can use SQL language in all DBMS
• We can also use JDBC and ODBC drivers for connecting to DBMS
• RDBMS
• Relational Database Management System. A DBMS that is based on the relational model
• The tables have an identifier called primary key
• It is similar to DBMS but its a DBMS based on relational model. The tables in this will be somehow connected. There will be the primary key, and based on primary key, the tables are connected. Hence it is called as a relational database management system.

Famous RDBMS softwares are

• MySQL
• PostgreSQL
• Microsoft SQL Server
• Oracle
• IBM DB2

DDL and DML

• SQL id used for two broad types of functions
• DDL – Data Definition Language
  • Create database
  • Create tables
  • Access rights
  • Manage Authentication
• DML – Data manipulation language
  • Insert data
  • Query the data
  • Analyze the data

In Data Analysis course we focus on “Data Manipulation Language”.

LAB: Installing Database

• For writing SQL queries, we need MySQL workbench or MySQL command line client installed in our system.
• Right now we do not have a database. Before we write any queries, we have to make sure that there is a database that we can access. So lets us intall the database. This need not be done always. We can create database just once and work on it.
• Now open MySQL.
• Create a user in Mysql
• We have to create a new connection with a name let’s say, “local”. The username and password for local will be root. This is for our convenience, we can use any name for user and password.
• An sql file is shared, which will automatically create a database.
• Open the sql file in a new query tab and run it. The database “classicmodels” will be automatically created.
• In the Action Output window, under schemas we can see the database created.
• We will be writing queries with respect to this database.

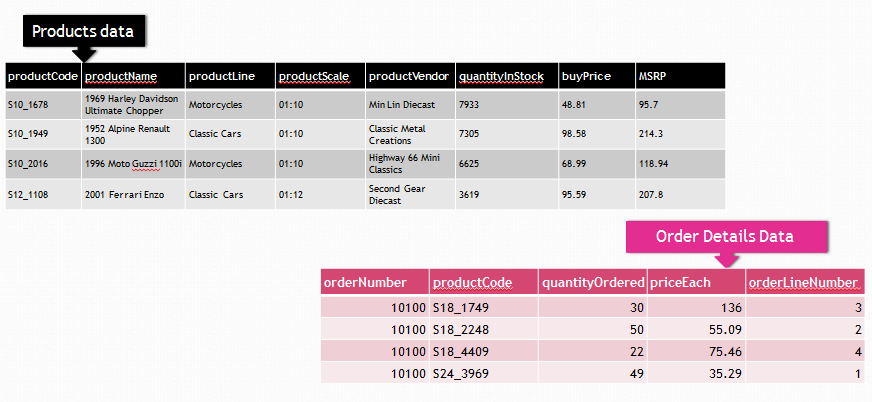

Right Outer Join

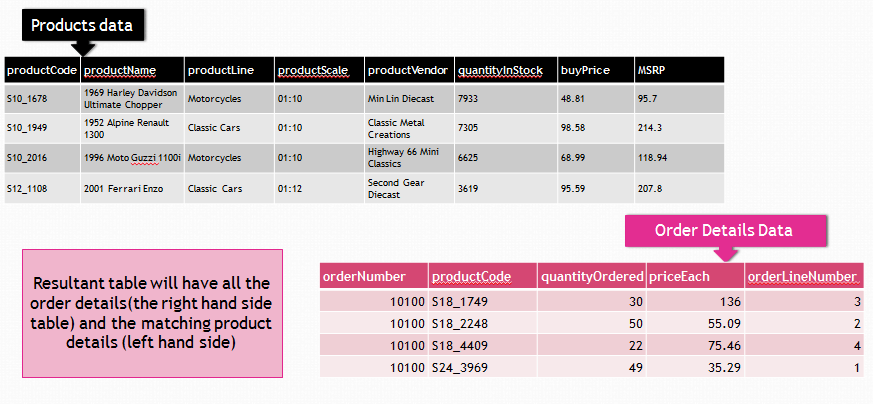

• Resultant table will have all the order details(the right hand side table) and the matching product details (left hand side table)
• All from right table, matching from left table .
• Matching will be done based on a unique id.
• This is called right outer join
• Matching records will be populated , otherwise fields are left blank

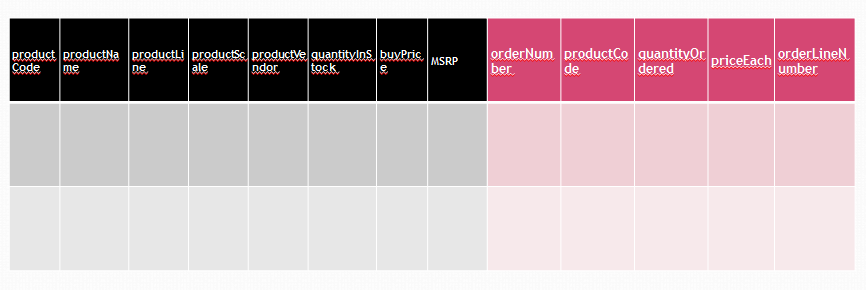

• This will be the resultant table. It will contain all the columns from both the tables. It will contain all the products from the right table i.e., the order details table but it will contain the description of only matching products from the product details table.

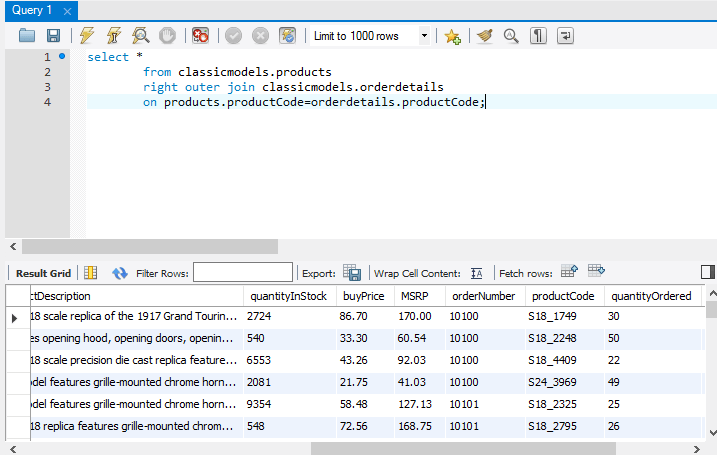

Code Right Outer Join

        select *
        from classicmodels.products
        right outer join classicmodels.orderdetails
        on products.productCode=orderdetails.productCode;

• The poductCode column will be there in both the table, based on which we will find the match.

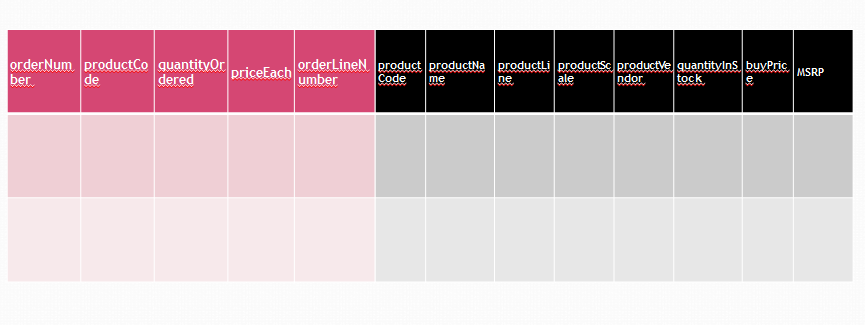

Left Outer Join

• Same logic as right outer join
• We would like to keep all the data from left hand side table and matching data from right hand side table
• The table of importance is the left side one

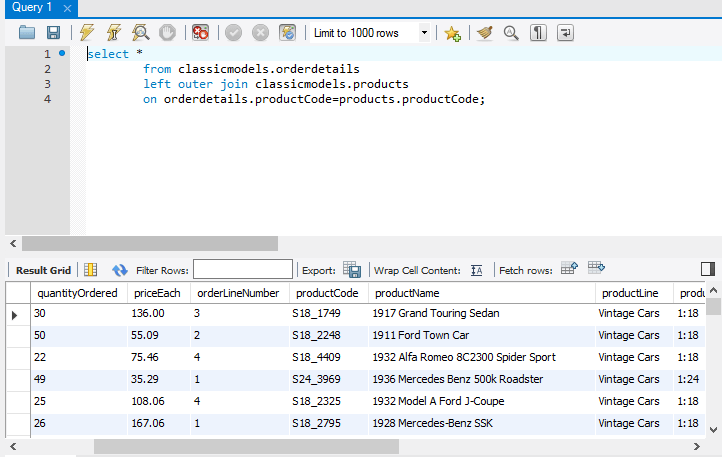

Code – Left outer join

        select *
        from classicmodels.orderdetails
        left outer join classicmodels.products
        on orderdetails.productCode=products.productCode;

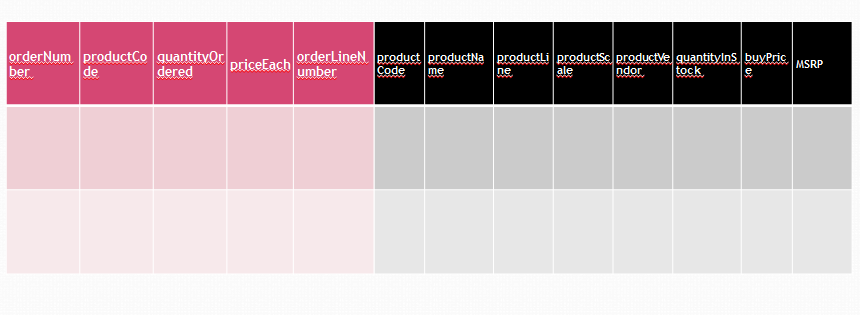

Inner Join

• We have two tables
• Two tables have connecting key
• We want the details of all the matching records or common records from two tables
• We match the key, if it is there in both the tables then the resultant table will have the record, if it is not present in any one of the tables, then it will be dropped.

Inner Join and outer join difference

• Left outer join contains all the records from left dataset, unconditionally
• Right outer join contains all the records from left dataset, unconditionally
• Inner join contains only matching records

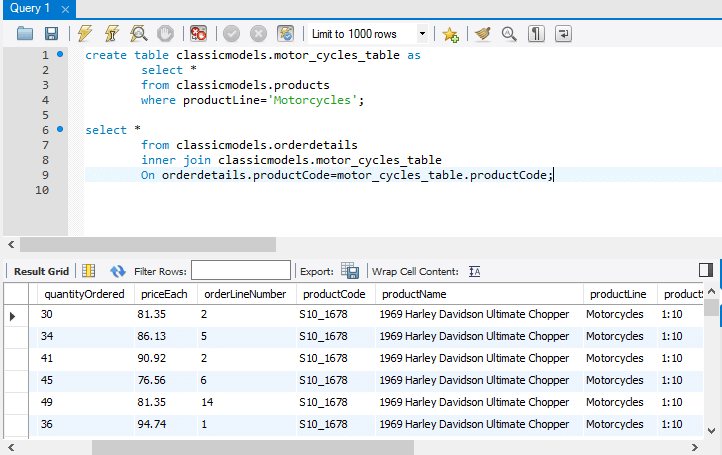

Code – Inner Join

        select *
        from classicmodels.orderdetails
        inner join classicmodels.motor_cycles_table
        On orderdetails.productCode=motor_cycles_table.productCode;

Full Outer Join

• We have two tables.
• Table-1 has some unique data that is not there in table-2
• Table-2 has some unique data that is not there in table-1
• The common data can be extracted using inner join
• How to extract over-all available data, which is there in table-1 and table-2
• Full outer join fetches all the available information

Code-Full Outer Join

Full outer join – Part-1 : Left Outer Join

    select * from classicmodels.orderdetails left outer join classicmodels.products on              orderdetails.productCode=products.productCode;

Full outer join – Part-2 : Right Outer Join

        select * from classicmodels.orderdetails right outer join classicmodels.products on products.productCode=orderdetails.productCode;

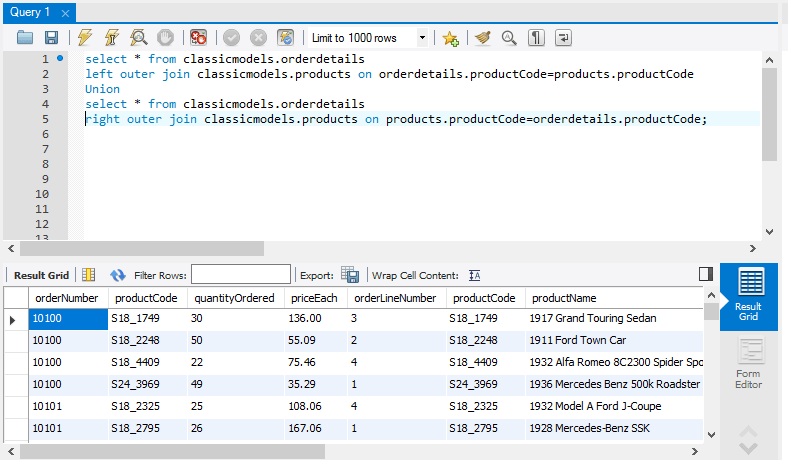

Then combine these tqo queries

        select * from classicmodels.orderdetails left outer join classicmodels.products on orderdetails.productCode=products.productCode
        Union
        select * from classicmodels.orderdetails right outer join classicmodels.products on products.productCode=orderdetails.productCode;
